River Aquatic Plant Harvester With Diesel Engine

Name: River Aquatic Plant Harvester With Diesel Engine
Brand: yongsheng
Price: 23500 USD

Wholesale River Aquatic Plant Harvester With Diesel Engine from china suppliers

Brand Name : yongsheng

Model Number : YS-wcb8

Place of Origin : china

MOQ : 1piece

Price : 23500usd/piece

Payment Terms : L/C,T/T

Supply Ability : 100piece/year

Delivery Time : 30work days

Packaging Details : container

No-load draught : 0.55m

full-load draught : 0.75m

Silo storage capacity : 8m³

Collection width : 1.6m

Collection depth : 0-1m

Walking style : Paddle wheel

Sailing speed : ≥8km/h(no-load), ≥4km/h(full load)

Battery life : 16h

power : 60kw

use : river cleaning ,Waterweed harvesting

Contact Now

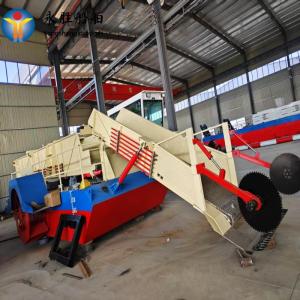

River Aquatic Plant Harvester With Diesel Engine

Automatic cleaning ship is currently the most widely used, according to the different plants on the water,

can be used for cleaning ship supporting different parts, such as saw blade, bottom shear, vertical shear,

wheel knife, etc., according to the water area is different, the design meets the requirements of the hull

size, some complex waters can also be used with several cleaning ships.

The role of each component:
   1 Front collection arm
Including the harvesting system and transmission system of the mowing boat. The cutting teeth on both sides and the bottom cut off the waterweed and transmit it to the rear storage bin through the stainless steel chain moving in the middle.

 2 Wheel
The traveling wheel of the mowing boat adopts the design of paddle wheel, which is light, convenient and not easy to entangle with waterweed.

 3 Storage space
The rear storage bin is a temporary storage bin for harvested waterweed, which has the characteristics of large capacity and easy loading and unloading.

 4 Hull
The hull is made of high-quality materials, including three parts: bottom plate, side plate, and deck. Excellent texture, strong and durable.

 5 Operation room
The control room is the main control console of the entire mower, which can control the movement, rotation, rising and sinking of the collection arm, forward and reverse rotation of the collection chain, etc. The control room adopts a transparent window design, which provides a wide field of view and facilitates operation.



Part Of Specifications For Reference:
Model	YSWCB8	YSCSD10
Storage Size(m3)	8	10
Power(KW)	60	88
Full Load Draft(mm)	0.8	0.85
Moving Way	Paddle wheel	Paddle wheel
Cruising Ability(h)	16	16
Collection Width(m)	1.6	1.8
Collection Depth(m)	1.2	1.2

River Aquatic Plant Harvester With Diesel Engine

1.The equipment can used in collect,transport,discharge water hyacinth,reed,algae and garbage in the

water.
2.the operation system use full automatic centralized control, this can make the equipmend sail and go

forward and back.
3.the equipment can be adjust the direction and do the unloading work by one person.this kind of dredger

is famous for it simple structure,flucxible movement and easy operation.
4.the machine is made is welding steel,the material is CCSB(China Classification Society Standard) ship

steel plates,the equipment pained 4 layersof anti-rust marine paint.
5.the opearion system uses remote centralized control, this can make the equipment sail,go forward and

back,adjust direction and do the loading work.

After Sales Service:
1. Signing a long-term after-service agreement with customers.
2. Rational and practical design according to clients' project needs and requirements.
3. Engineers will be sent for installation, testing and commissioning of new machine.
4. Operation service & maintenance guidance (Training of new
operators).
5. Troubleshooting & diagnosis.
6. Replacement suggestions & spare parts with competitive price.
7. Life time after sales service for all customers

River Aquatic Plant Harvester With Diesel Engine

River Aquatic Plant Harvester With Diesel Engine Images
