Customized Aquatic Plant Harvester With Large Capacity

Name: Customized Aquatic Plant Harvester With Large Capacity
Brand: yongsheng
Price: 23500 USD

Wholesale Customized Aquatic Plant Harvester With Large Capacity from china suppliers

Brand Name : yongsheng

Model Number : YS-wcb8

Place of Origin : china

MOQ : 1piece

Price : 23500usd/piece

Payment Terms : L/C,T/T

Supply Ability : 100piece/year

Delivery Time : 30work days

Packaging Details : container

No-load draught : 0.55m

full-load draught : 0.75m

Silo storage capacity : 8m³

Collection width : 1.6m

Collection depth : 0-1m

Walking style : Paddle wheel

Sailing speed : ≥8km/h(no-load), ≥4km/h(full load)

Battery life : 16h

power : 60kw

use : river cleaning ,Waterweed harvesting

Contact Now

Customized Aquatic Plant Harvester With Large Capacity

Automatic cleaning ship is currently the most widely used, according to the different plants on the water,

can be used for cleaning ship supporting different parts, such as saw blade, bottom shear, vertical shear,

wheel knife, etc., according to the water area is different, the design meets the requirements of the hull

size, some complex waters can also be used with several cleaning ships.

The role of each component:
   1 Front collection arm
Including the harvesting system and transmission system of the mowing boat. The cutting teeth on both sides and the bottom cut off the waterweed and transmit it to the rear storage bin through the stainless steel chain moving in the middle.

 2 Wheel
The traveling wheel of the mowing boat adopts the design of paddle wheel, which is light, convenient and not easy to entangle with waterweed.

 3 Storage space
The rear storage bin is a temporary storage bin for harvested waterweed, which has the characteristics of large capacity and easy loading and unloading.

 4 Hull
The hull is made of high-quality materials, including three parts: bottom plate, side plate, and deck. Excellent texture, strong and durable.

 5 Operation room
The control room is the main control console of the entire mower, which can control the movement, rotation, rising and sinking of the collection arm, forward and reverse rotation of the collection chain, etc. The control room adopts a transparent window design, which provides a wide field of view and facilitates operation.



Part Of Specifications For Reference:
Model	YSWCB8	YSCSD10
Storage Size(m3)	8	10
Power(KW)	60	88
Full Load Draft(mm)	0.8	0.85
Moving Way	Paddle wheel	Paddle wheel
Cruising Ability(h)	16	16
Collection Width(m)	1.6	1.8
Collection Depth(m)	1.2	1.2

Customized Aquatic Plant Harvester With Large Capacity

advantage:

1. Save labor: the work efficiency of one machine is equivalent to the work efficiency of 30 people.

2. Convenient transportation: On the premise of ensuring the rigidity of the lawn mower, the weight is

reduced as much as possible, so that the turning pond can be easily lifted manually.

3. Unique design: reduce the distance between the scissors part and the conveying part to prevent the cut

grass from falling into the pond.

4. Convenient disassembly: The scissors part, the conveying part, and the foam hull can all be disassembled

and repaired conveniently, and the conveying spindle is not welded.

5. Reduce water ingress and prolong service life: The steel pipe of the conveying frame is fully enclosed, and

water cannot enter the steel pipe, which can reduce rust and extend the service life.

6. Easy to use: Insert a battery pack and press the switch to use it easily.

After Sales Service:
1. Signing a long-term after-service agreement with customers.
2. Rational and practical design according to clients' project needs and requirements.
3. Engineers will be sent for installation, testing and commissioning of new machine.
4. Operation service & maintenance guidance (Training of new
operators).
5. Troubleshooting & diagnosis.
6. Replacement suggestions & spare parts with competitive price.
7. Life time after sales service for all customers

shandong yongsheng dredging machinery co., ltd.

emma whatsapp:008615054842997 email:emma@dredgerys.com

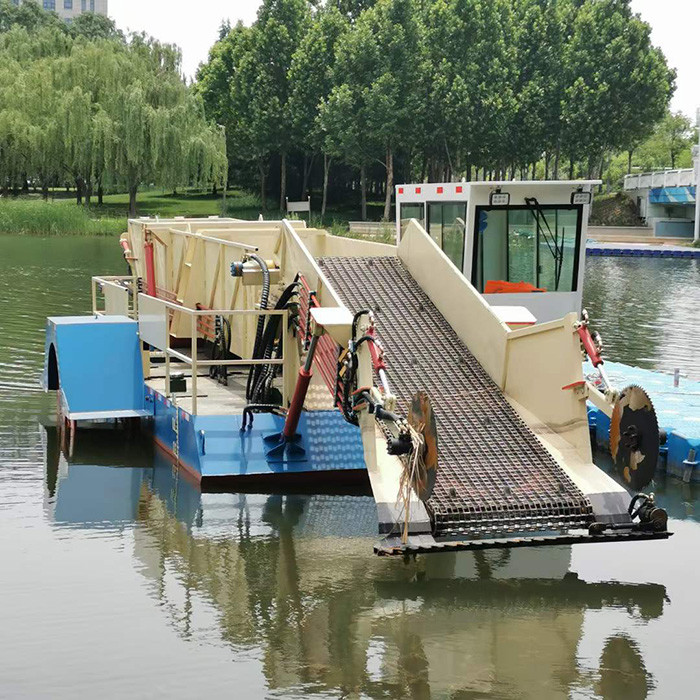

Customized Aquatic Plant Harvester With Large Capacity Images

Inquiry Cart 0

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Shandong Yongsheng Dredging Machinery Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

1	Front collection arm	Including the harvesting system and transmission system of the mowing boat. The cutting teeth on both sides and the bottom cut off the waterweed and transmit it to the rear storage bin through the stainless steel chain moving in the middle.
2	Wheel	The traveling wheel of the mowing boat adopts the design of paddle wheel, which is light, convenient and not easy to entangle with waterweed.
3	Storage space	The rear storage bin is a temporary storage bin for harvested waterweed, which has the characteristics of large capacity and easy loading and unloading.
4	Hull	The hull is made of high-quality materials, including three parts: bottom plate, side plate, and deck. Excellent texture, strong and durable.
5	Operation room	The control room is the main control console of the entire mower, which can control the movement, rotation, rising and sinking of the collection arm, forward and reverse rotation of the collection chain, etc. The control room adopts a transparent window design, which provides a wide field of view and facilitates operation.
